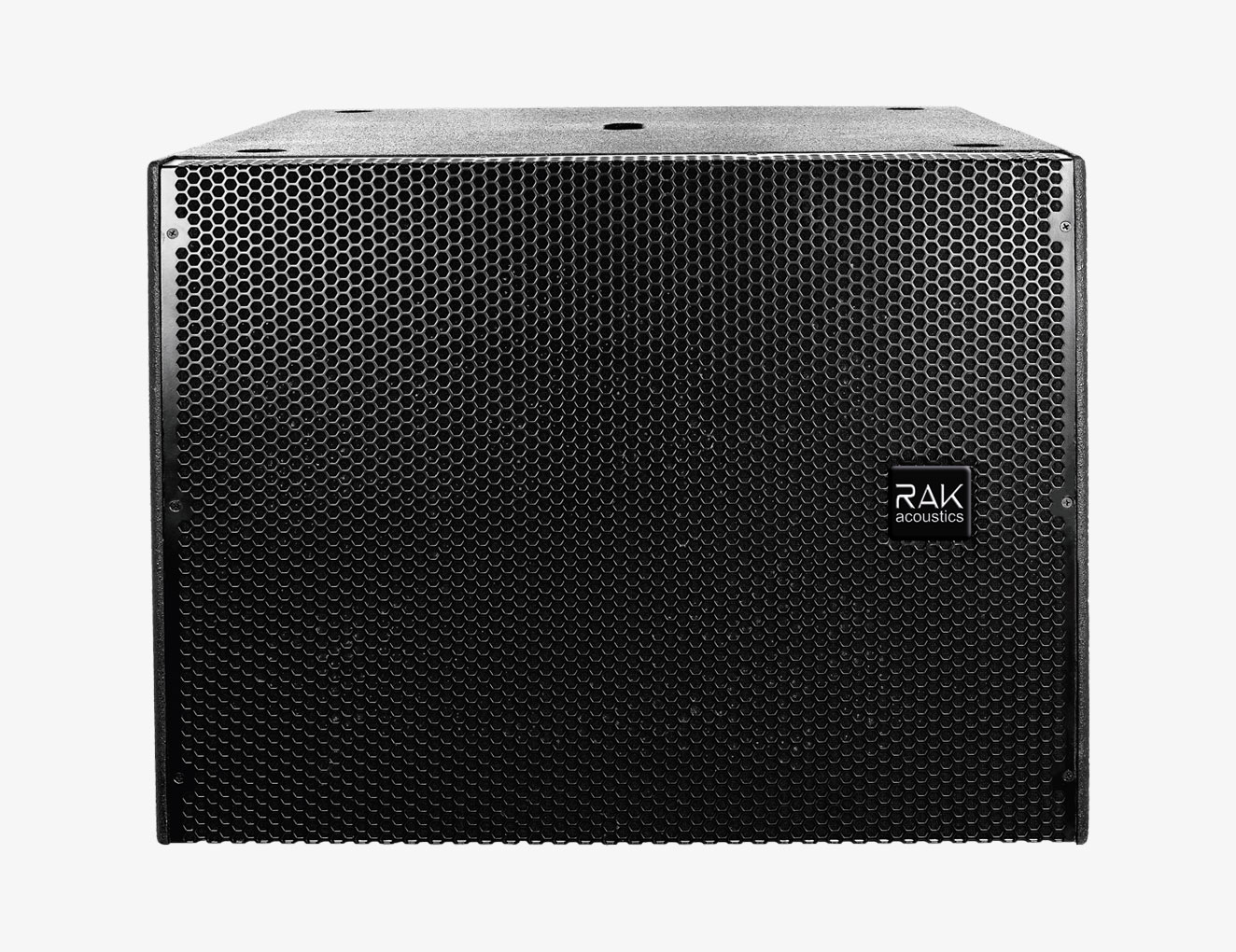

SW-115 is a Direct Radiating with Balanced Ports Compact subwoofer speaker system with long excursion capabilities providing excellent Linear Low Frequency, Deep Bass Response. High Sensitivity Design minimizes Power Compression. The system is optimized for near field and FOH application in medium and large venues.
Applications : LiveMusic, Live Theatre, Sports, Corporate, Bars and Restaurant,Convention Centers, Night Clubs and Places of Worship.
Design : |
Subwoofer single passive system |
Impedance : |
8 Ohms |
Power handling : |
700W continuous |
Sensitivity : |
100dB |
Frequency response : |
39Hz to 140Hz +/-3dB |
Max. spl : |
127dB |
Components : |
LF15”ferrite(304mm)3”(101.6mm) Doubletreatedconewithinneroutervoice coil |
Desperation : |
80* horizontal, 40* vertical |
Connectors : |
NL4 input and link |
Finish : |
Polyurea black coating |
Dimension ( H x W x D ) : |
685x533x711mm/27.00x21.00x28.00” |
Net weight : |
14 kg |
