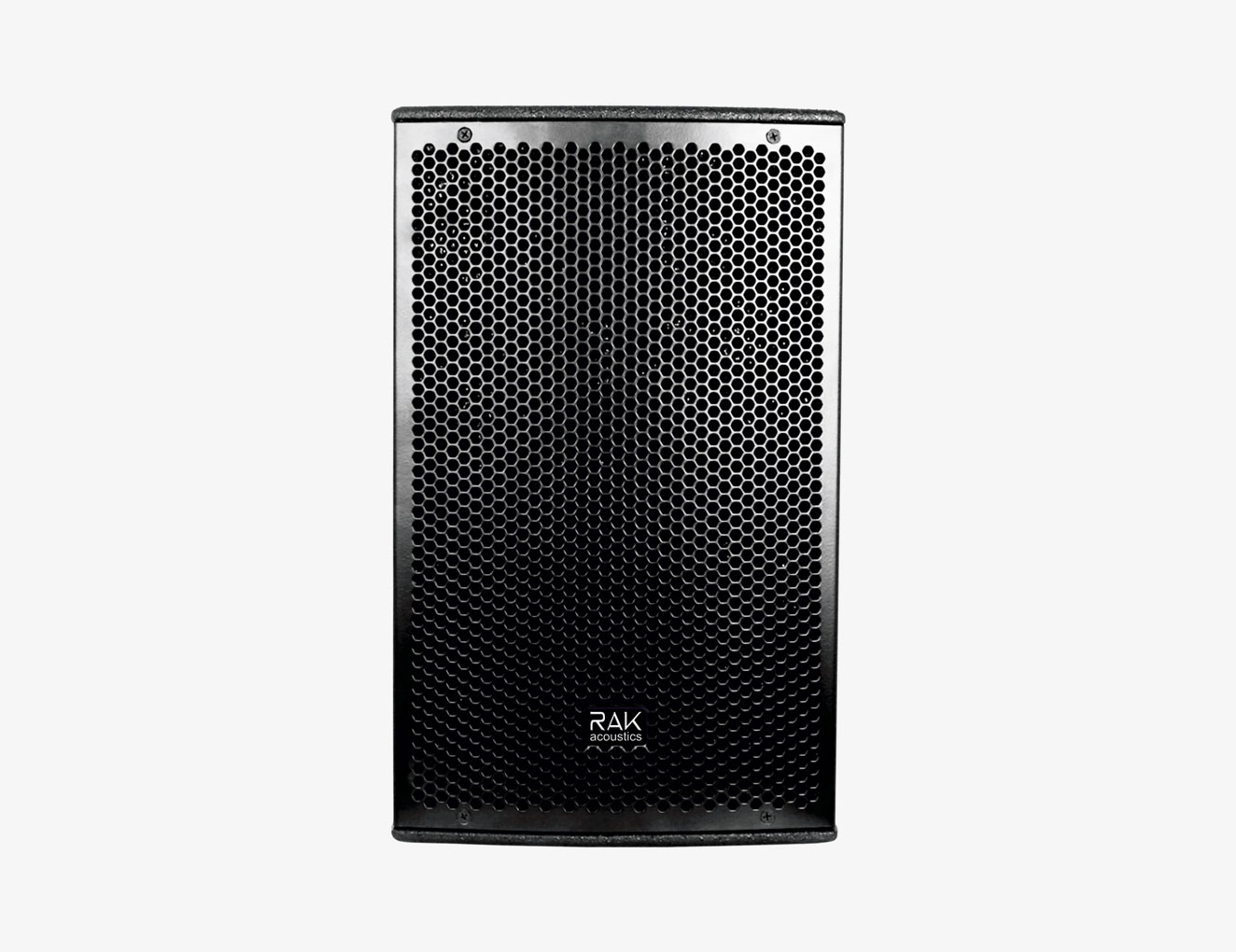

FR-12 is a compact passive 2-way loudspeaker system providing excellent linear performance and high output with minimal power compression. The system is optimized for near field and FOHapplicationinmediumandlargevenueswhereSuperiorDispersion with Tight, Punchy Bass Response and a Detailed Midrange Voice Projection are required.
Applications : LiveMusic, Live Theatre, Sports, Corporate, Bars and Restaurant,Convention Centers, Night Clubs and Places of Worship.
Design : |
Full range two-way passive system |
Impedance : |
8 Ohms |
Power handling : |
500W continuous |
Sensitivity: |
95dB |
Frequency response : |
60Hz to 20Khz (-6dB) |
Max. spl : |
124dB |
Components : |
LF12”ferrite(304mm)3”(75.4mm)voicecoil Hf1”exit(50.8mm)2”(50.8mm)voicecoil |
Desperation : |
80* horizontal, 40* vertical |
Connectors : |
NL4 input and link |
Finish : |
Polyurea black coating |
Dimension ( H x W x D ) : |
590x350x380mm/23.20x13.80x15.00” |
Net weight : |
17 kg |
