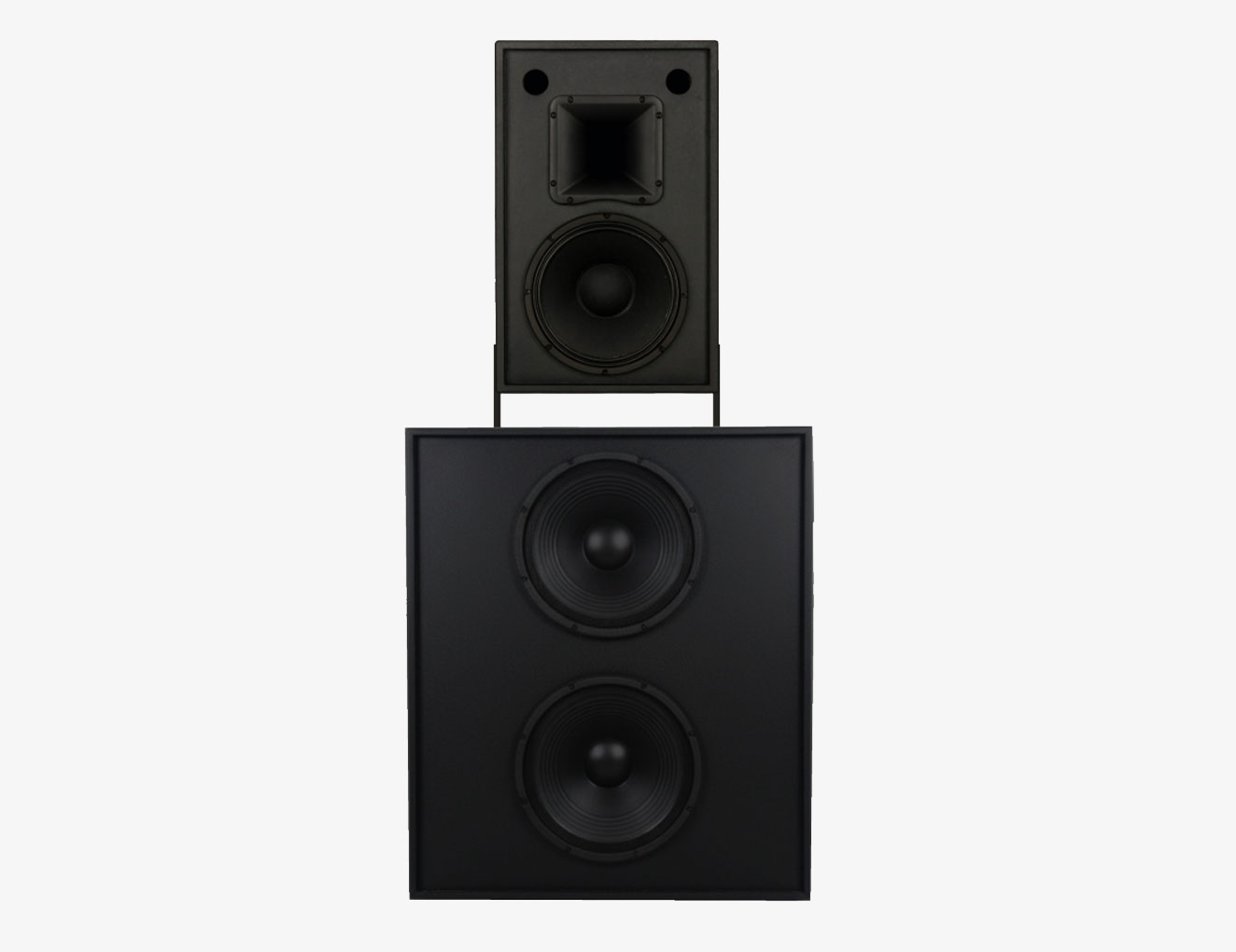

The TH-160 is a high-performance 3-way speaker system engineered for exceptional acoustic fidelity across a wide frequency range. Designed for mid to large-scale cinematic installations, it delivers precision, durability, and outstanding tonal balance, ideal for main screen channels in professional audio environments.
Low-Frequency Extension: Equipped with dual 15" long-throw woofers housed in a reinforced bass reflex enclosure, the TH-160 produces deep, impactful low-end response with minimal harmonic distortion.
Midrange Clarity: A dedicated 12" low-mid transducer ensures articulate vocal reproduction and refined instrumental detail across the mid-frequency spectrum — critical for cinematic dialogue and musical nuance.
High-Frequency Accuracy: A 3" voice coil compression driver, mounted on a 60° x 60° controlled dispersion waveguide, delivers crisp, accurate high frequencies with consistent coverage across the auditorium.
Flexible Crossover Configuration: The TH-160 includes integrated passive crossovers for out-of-the-box performance, while also allowing easy transition to bi-amplification for advanced system tuning and optimization.
3-way professional cinema speaker system.
Dual 15" woofers in a bass reflex enclosure for deep, controlled lows.
12" low-mid transducer for vocal clarity and dynamic midrange performance.
3" voice coil compression driver with 60° x 60° waveguide for precise high-frequency coverage.
Integrated passive crossover, 3-way (bi-amp) ready configuration.
Designed for mid to large-scale cinema environments.
The TH-160 sets a new standard for cinema sound, delivering powerful, balanced performance with the flexibility and reliability demanded by professional audio engineers.
Power Rating : |
LF: 1000W RMS: 3000W Peak |
|
MH: 500W RMS: 1050W Peak |
Nominal Impedance : |
LF: 4 Ohms / MH: 8 Ohms |
Frequency Response : |
40Hz-22kHz |
SPL : |
LF: 130 dB / MH: 126 dB |
Sensitivity@ 1W / 1m : |
LF: 101 dB / MH 100 dB |
Components : |
LF: 2 x 15" long excursion drivers |
|
MH: 1 x 12" low mid driver with 3" VC |
|
HF: 1 x 3" VC compression driver |
Dispersion : |
60° H x 60° V |
Recommended Power : |
LF: 1200 W / MH: 700 W |
Input Terminals : |
Push-in Terminals |
Enclosure : |
Wood |
Dimensions (WxDxH) : |
LF: 32.75" x 13.5" x 38" |
|
MH: 16.5" x 11.85" x 26.75" |
Weight : |
95 kg |
