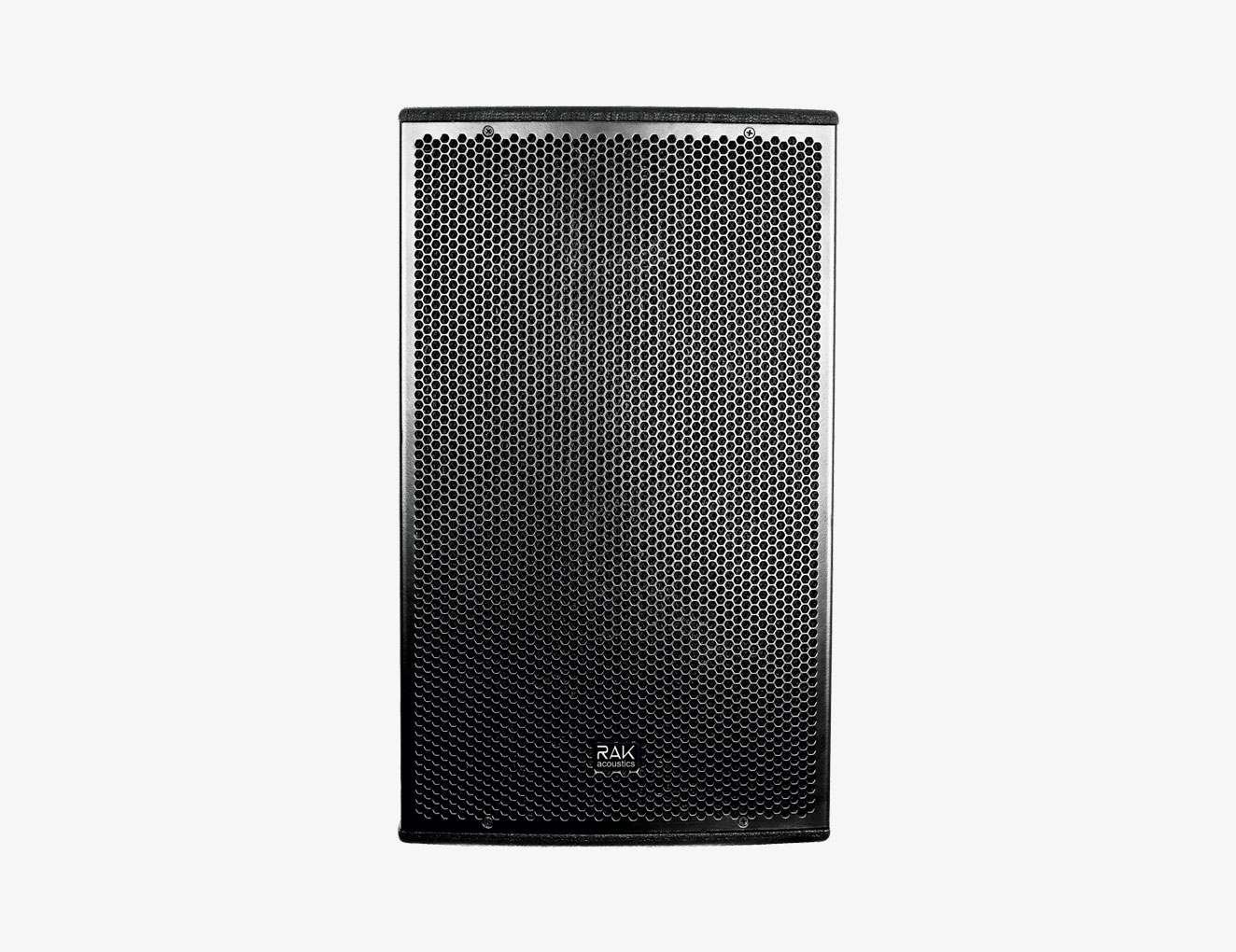

FR-10 is a compact passive 2-way loudspeaker system providing excellent linear performance and high output with minimal power compression. The system is optimized for near-field application in small and medium venues where Superior Dispersion, High-Fidelity Bass Response and a Detailed Mid-range Voice Projection is required.
Applications : Livemusic, LiveTheatre, Sports, Corporate, Bars and Restaurant, Convention Centre, Night Clubs and Place of Worship.
Design : |
Full range two-way passive system |
Impedance : |
8 Ohms |
Power handling : |
350W AES |
Sensitivity : |
93dB |
Frequency response : |
64Hz to 19KHz(-6dB) |
Max. spl : |
120dB |
Components : |
LF10”ferrite(250mm)3”(75.4mm)voicecoil Hf1”exit(50.8mm)2”(50.8mm)voicecoil |
Desperation : |
80* horizontal, 40* vertical |
Connectors : |
NL4 input and link |
Finish : |
Polyurea black coating |
Dimension ( H x W x D ) : |
490x300x360mm/19.30x11.80x14.20” |
Net weight : |
14 kg |
