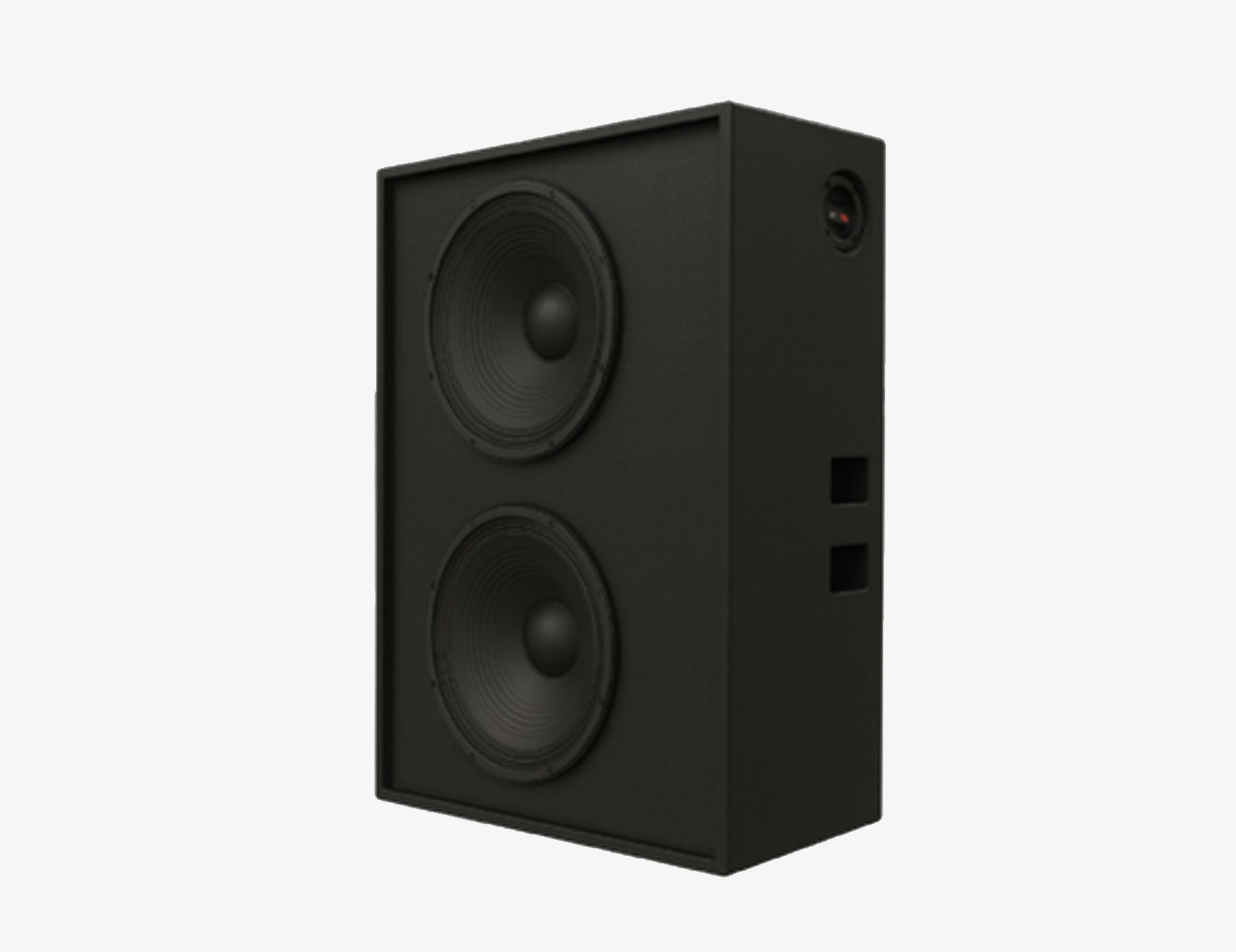

The TH-215W is a high-output passive subwoofer designed for small to medium-sized theatres. Built to deliver deep, powerful low-frequency performance, it integrates seamlessly into 5.1, 7.1, or Dolby Atmos cinema sound systems, providing the foundation for a truly immersive audio experience.
At its core, the TH-215W features dual 15-inch long-excursion woofers housed in a tuned, high-efficiency bass reflex enclosure. This configuration ensures extended low-end response with high output, low distortion, and excellent transient performance — ideal for the demands of modern cinema soundtracks.
With a 1000-watt power handling capacity (program) and a robust passive design, the TH-215W offers versatile integration into existing audio setups while maintaining ease of use and long-term reliability.
Dual 15" long-excursion woofers for deep, cinematic bass.
Tuned bass reflex enclosure for high efficiency and low distortion.
1000W (program) power handling.
Optimized for small to medium-sized cinema rooms.
Ideal for use in 5.1, 7.1, and Dolby Atmos systems.
Durable, installation-friendly cabinet design.
Whether supporting explosive action sequences or subtle atmospheric effects, the TH-215W delivers the powerful low-end impact that cinema sound demands.
Frequency Range : |
40 Hz-22 kHz 1000 W |
Power handling |
4 Ohms |
Nominal Impedance : |
101 dB |
Sensitivity@1watt : |
130 dB |
Max SPL @ 1 meter : |
|
Dispersion : |
60°H x 60°V |
Components : |
2 x 15" long excursion drivers |
Recommended Power |
1200 W |
Input Terminals |
Push-in Terminals |
Enclosure : |
Wood |
Dimensions (WxDxH) : |
32.75" x 13.5" x 38" |
Weight : |
65 kg |
