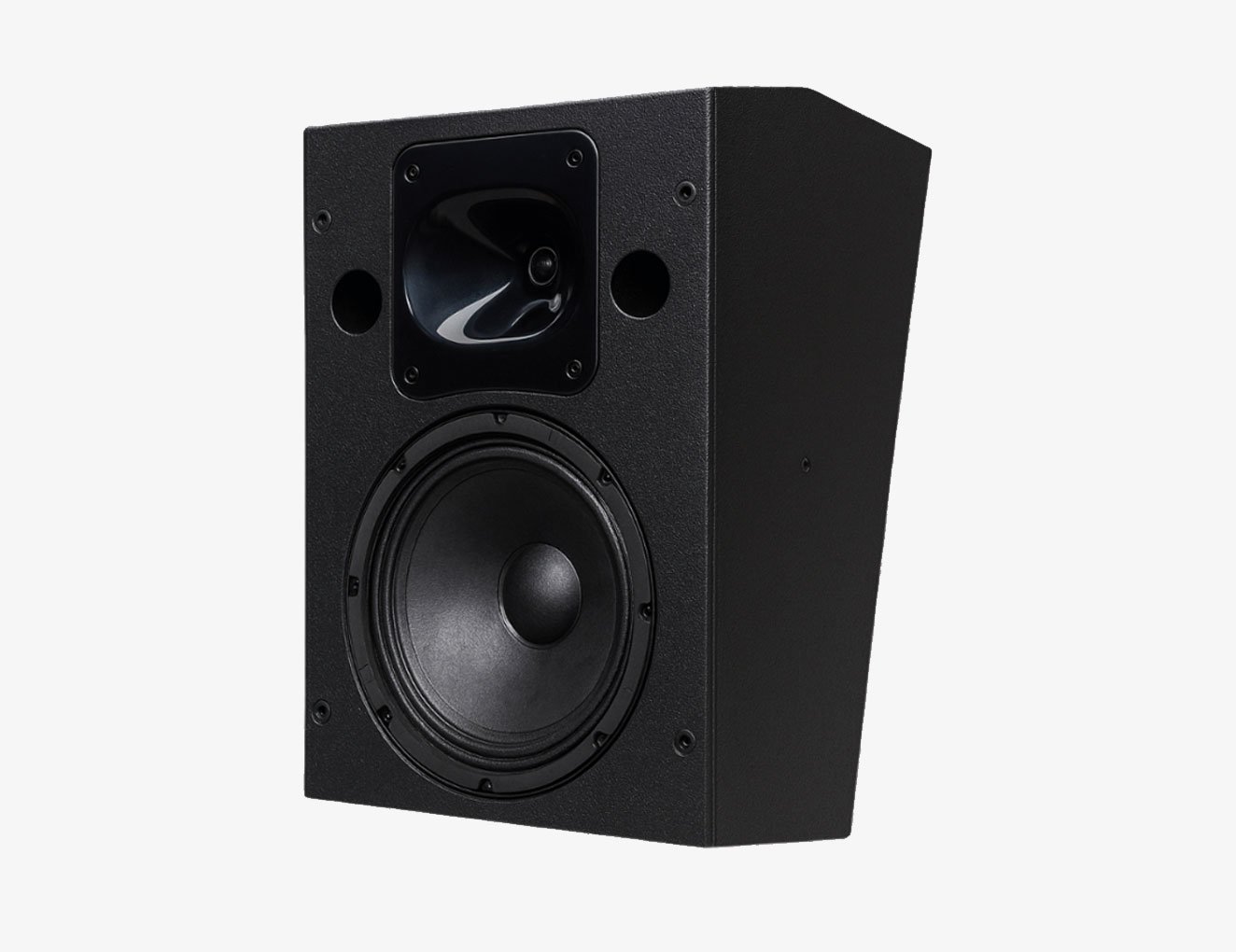

TH-10 is a passive two-way surround speaker designed for small to medium-sized theaters. Engineered for versatility, it integrates seamlessly into 5.1, 7.1, or Dolby Atmos setups. Whether wall-mounted on the sides, placed at the rear, or suspended overhead.
At the heart of the TH-10 is a powerful 10" woofer, delivering solid low and mid-frequency performance. This is paired with a 1" compression driver and a 90° x 40° waveguide, ensuring wide, even coverage and detailed sound reproduction throughout the listening area.
With a built-in crossover and 280-watt power handling, the TH-10 provides efficient, high-output performance. Its plug-and-play design and straightforward installation make it a hassle-free solution for achieving immersive, cinema-quality surround sound.
Passive two-way design
10" woofer for robust low and mid frequencies
1" compression driver with 90° x 40° waveguide
Built-in crossover for smooth frequency transition
280W power capacity for powerful, clear output
Compatible with 5.1, 7.1, and Dolby Atmos configurations
Flexible mounting options: side, rear, or overhead installation
The TH-10 delivers reliable, high-performance surround sound — perfect for any modern cinema environment.
Frequency Range : |
62Hz-20kHz |
Power handling : |
280W |
Nominal Impedance : |
8 Ohms |
Sensitivity @ 1 watt : |
96 dB |
Max SPL @ 1 meter : |
118 dB |
Dispersion : |
90°H x 40°V |
Components : |
Low-mid woofer 10" |
|
Compression driver 1" |
Enclosure : |
Wood |
Dimensions (WxDxH) : |
11.50" x 11.25" x 19.25" |
Weight : |
15 kg |
