Rak Acoustics

Passive Crossover

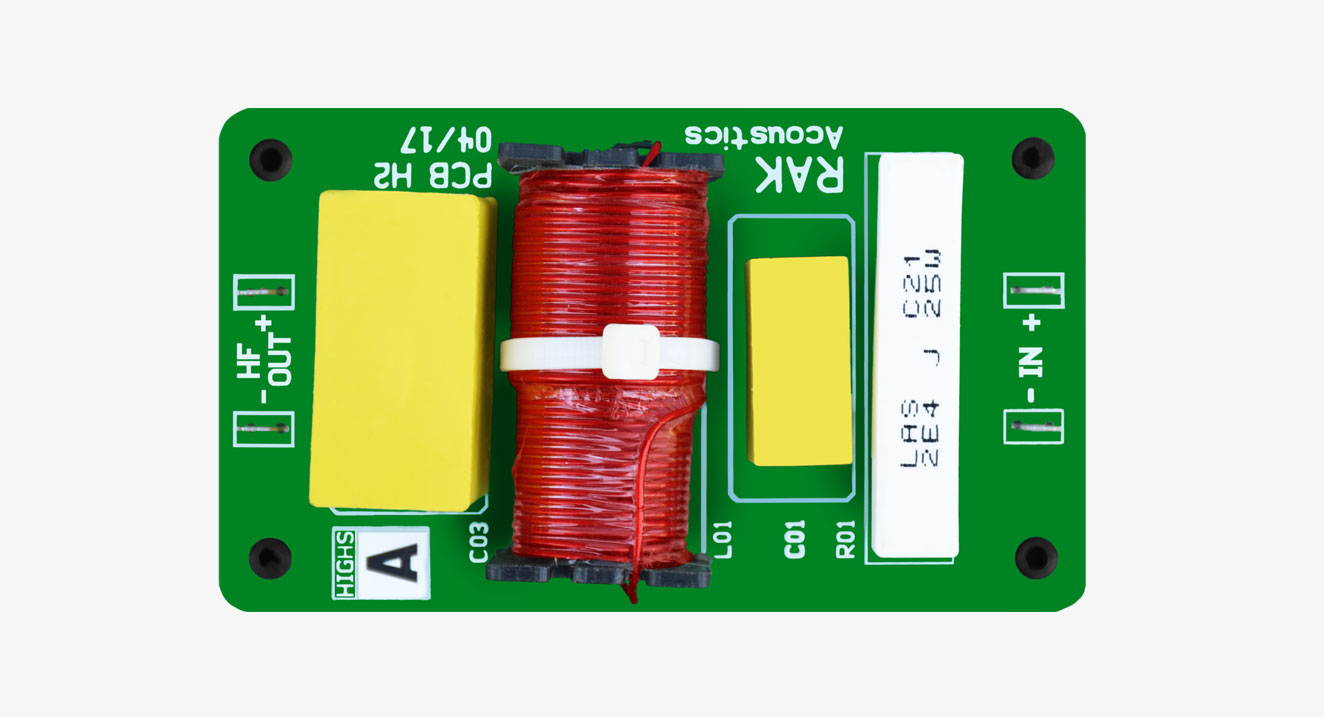

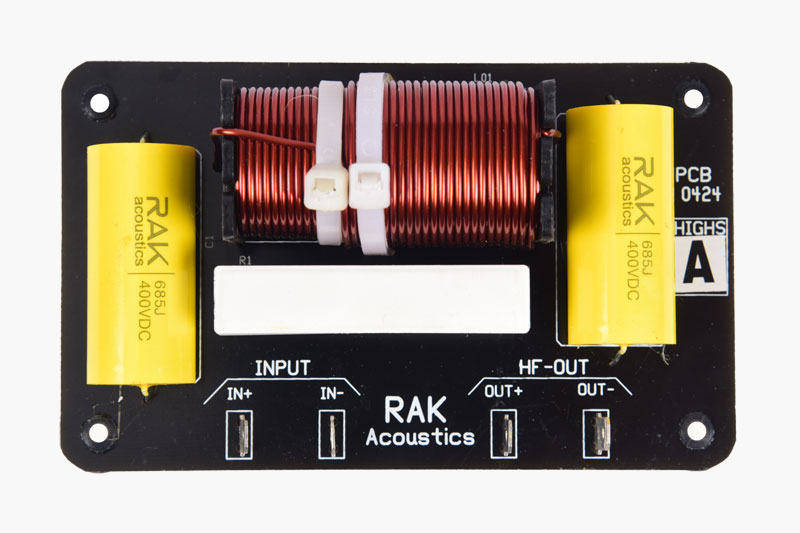

Passive Crossover - A Type

A Type

MODEL	ATYPE
PASSIVE CROSSOVER	HighPassFilter
Crossover Frequency	1.8KHz
Slope	12dBIOctave
Impedance	Highs8ohms
PowerHandling	600Watts

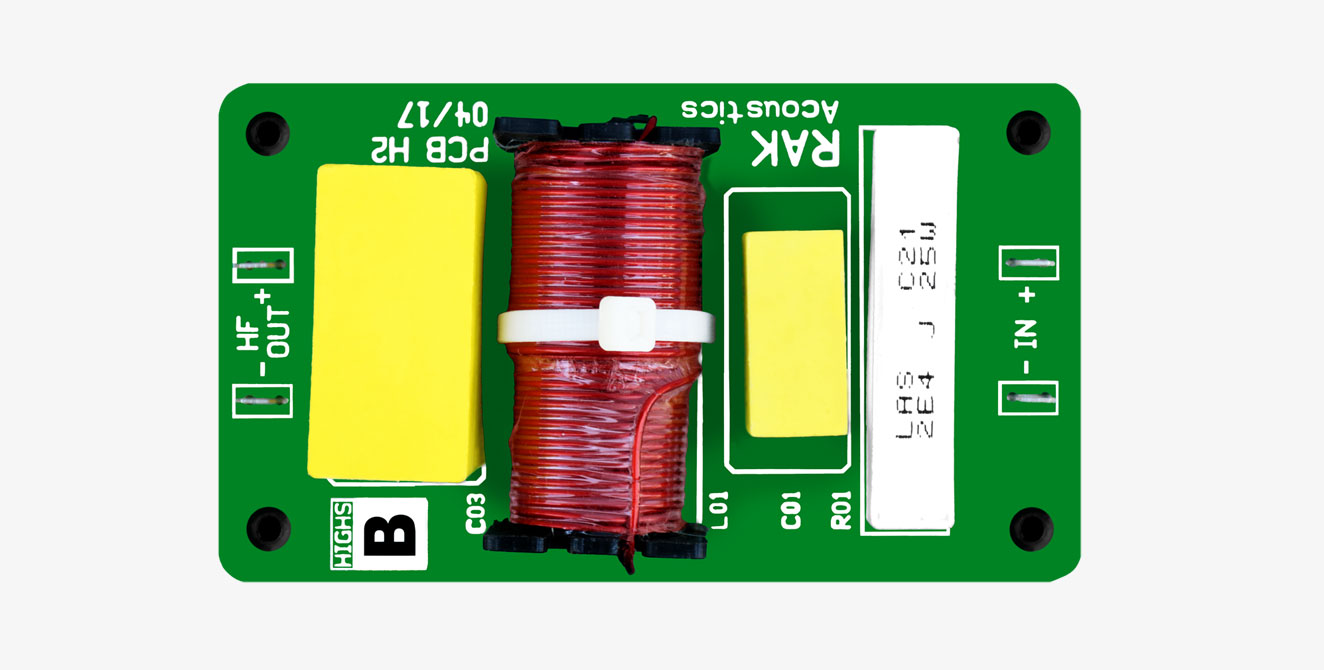

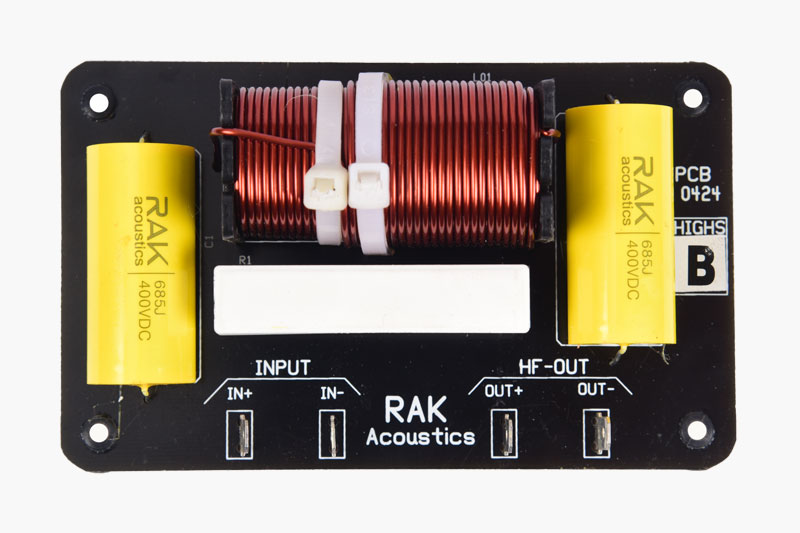

Passive Crossover - B Type

B Type

MODEL	BTYPE
PASSIVECROSSOVER	HighPassFilter
Crossover Frequency	2.4KHz
Slope	12dBIOctave
Impedance	Highs8ohms
PowerHandling	400Watts

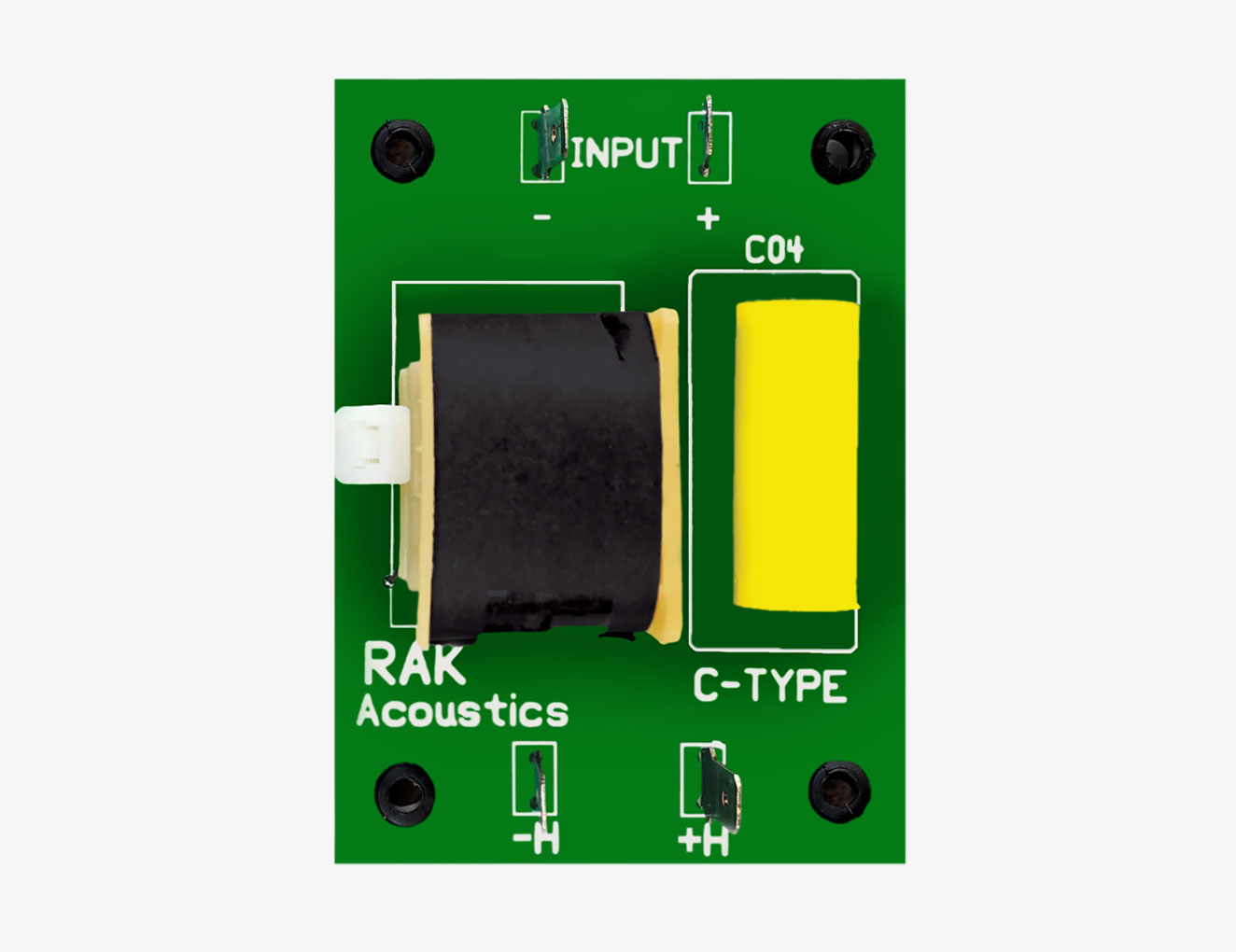

Passive Crossover - C Type

C Type

MODEL	CTYPE
PASSIVECROSSOVER	HighPassFilter
CrossoverFrequency	3.3KHz
Slope	12dBOctave
Impedance	Highs8ohms
PowerHandling	200Watts

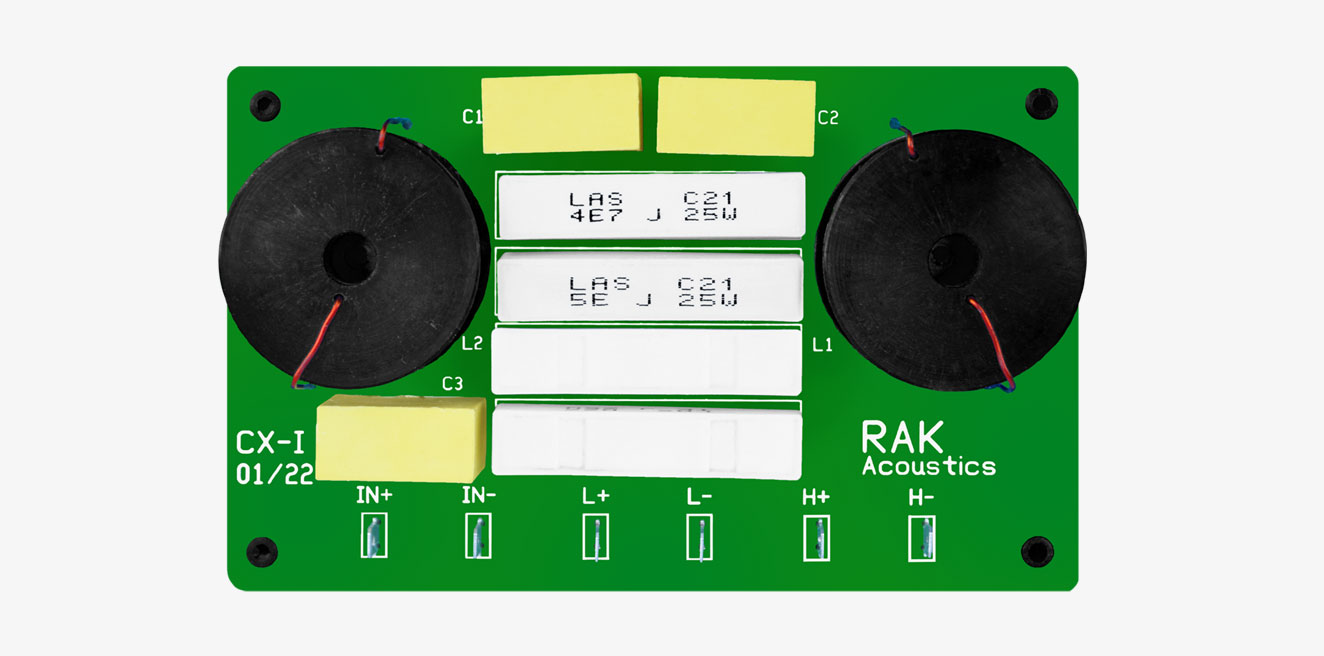

Passive Crossover - CX I

CX I

MODEL	CX-I
PASSIVECROSSOVER	2WAY
CrossoverFrequency	2.4KHzAsymmetric
Slope	12dBIOctaveLP 12dBIOctaveHP
Impedance	Highs8ohms
PowerHandling	600Watts

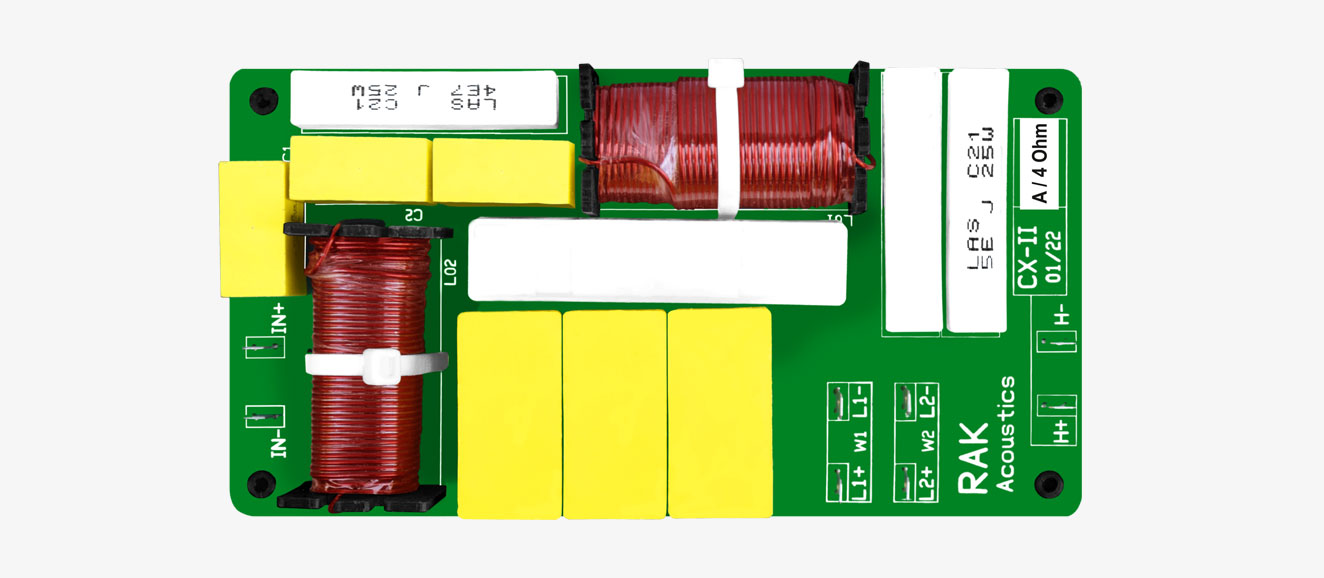

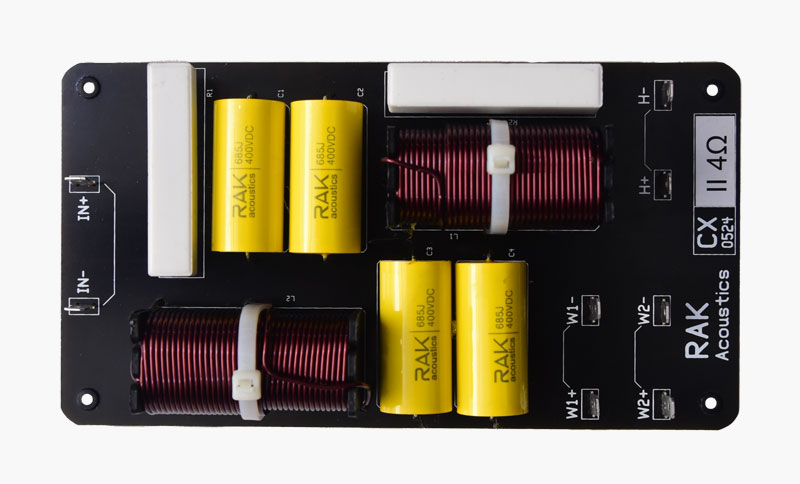

Passive Crossover - CX II

CX II A Type

MODEL	CX-II
PASSIVECROSSOVER	2WAY
Crossover Frequency	1.8KHzAsymmetric
Slope	12dBIOctaveLP 12dBIOctaveHP
Impedance	Highs4ohms
PowerHandling	1200Watts

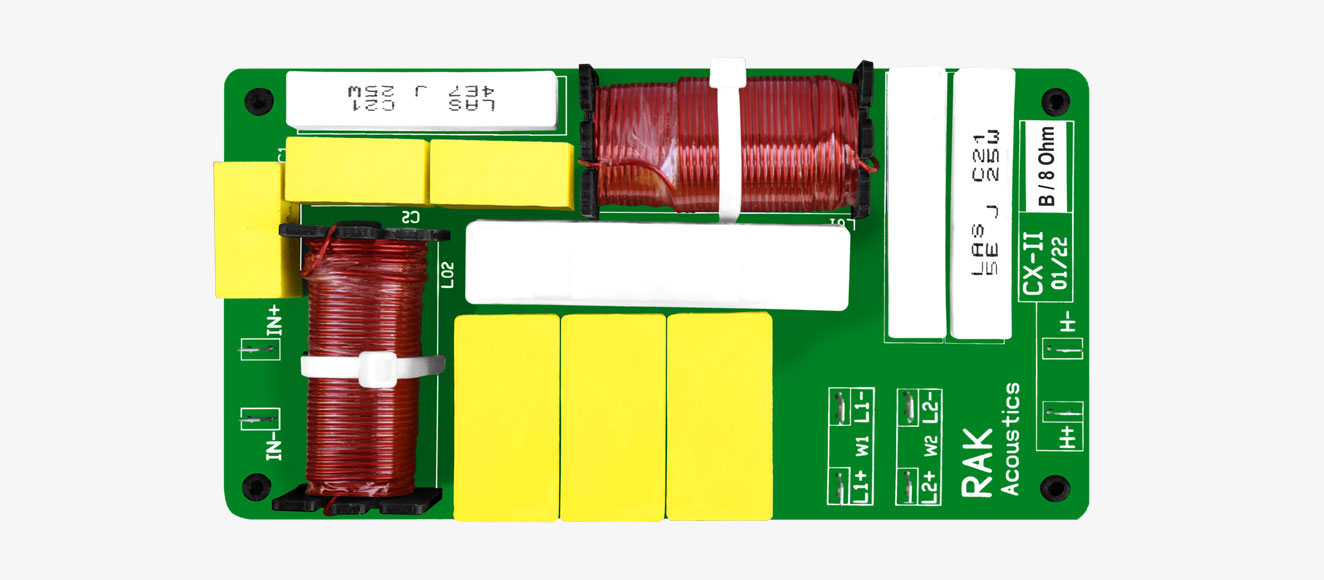

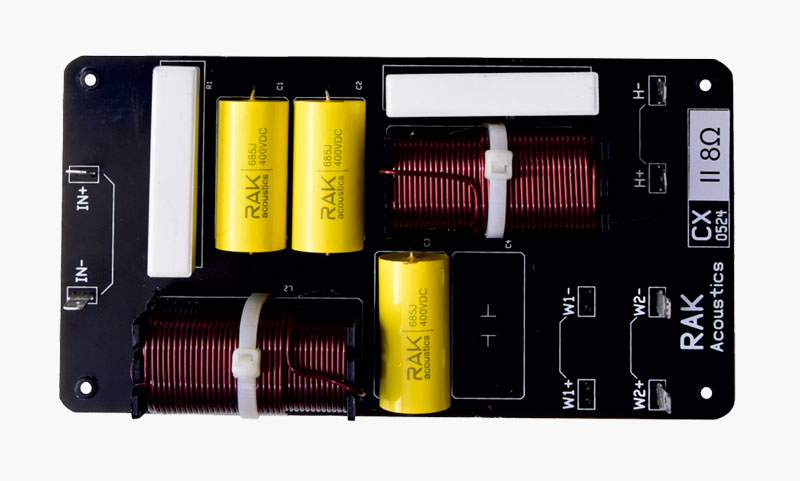

Passive Crossover - CX II

CX II B Type

MODEL	CX-II
PASSIVECROSSOVER	2WAY
Crossover Frequency	1.8KHzAsymmetric
Slope	12dBIOctaveLP 12dBIOctaveHP
Impedance	Highs8ohms
PowerHandling	800Watts
