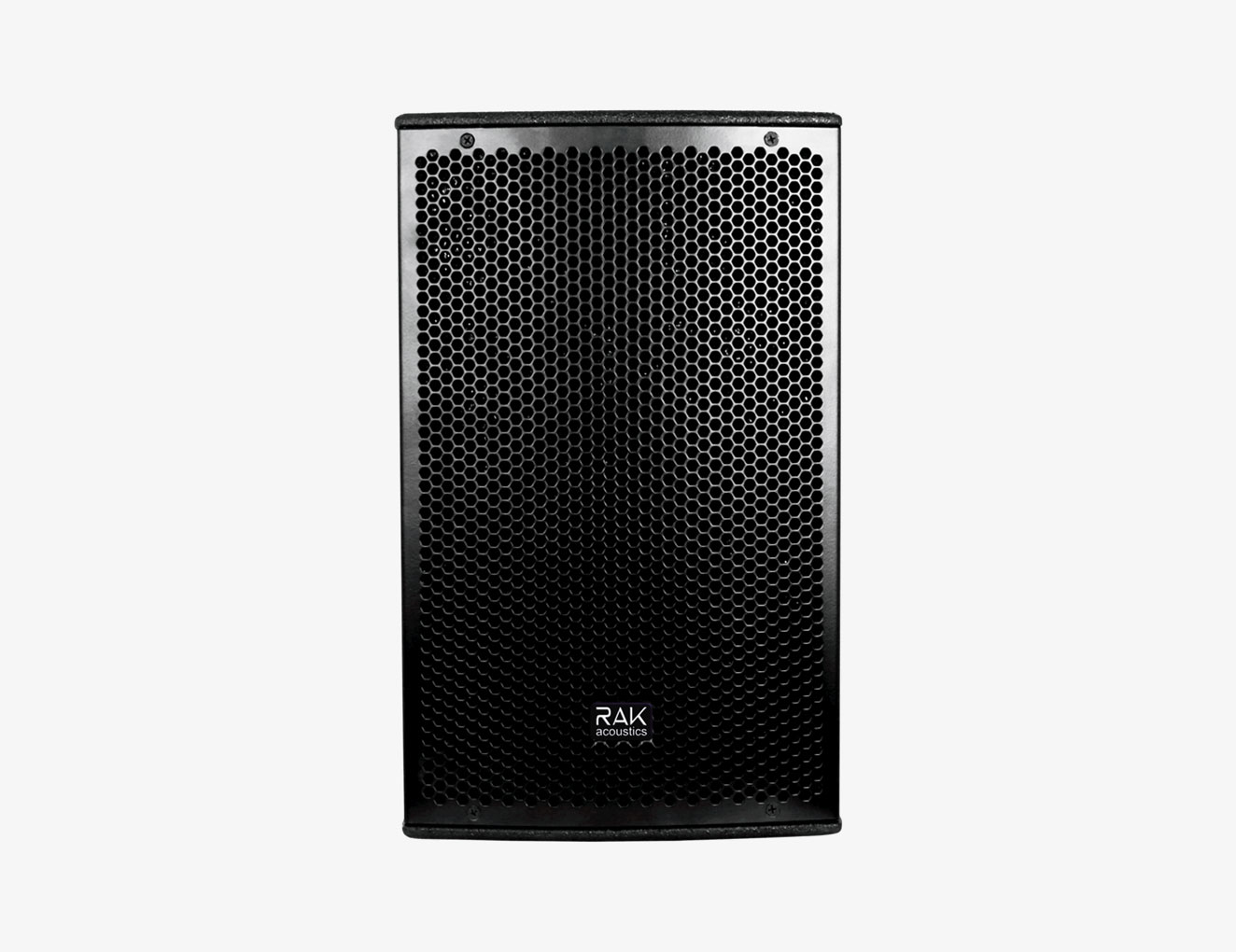

FR-8 is acompact passive 2-way loud speakerssystem, providing excellent acoustic Performance with very high output capabilities to its size ratio. The system is optimized for near field application in small and medium venueswhere High-Fidelity and Articulated Voice Projection is required.
Design : |
Full range two-way passive system |
Impedance : |
8 Ohms |
Power handling : |
200W AES |
Sensitivity : |
93dB |
Frequency response : |
68Hz to 18Khz +/-3dB |
Max.spl : |
118dB |
Components : |
LF8”ferrite(200mm)2”(50mm)voicecoil Hf1”exit(25.4mm)3”(33mm)voicecoil |
Desperation : |
60*horizontal, 40*vertical |
Connectors : |
NL4 input and link |
Finish : |
Polyurea black coating |
Dimension ( H x W x D ) : |
432x270x320mm/17.00x10.60x12.60” |
Net weight: |
9 kg |
